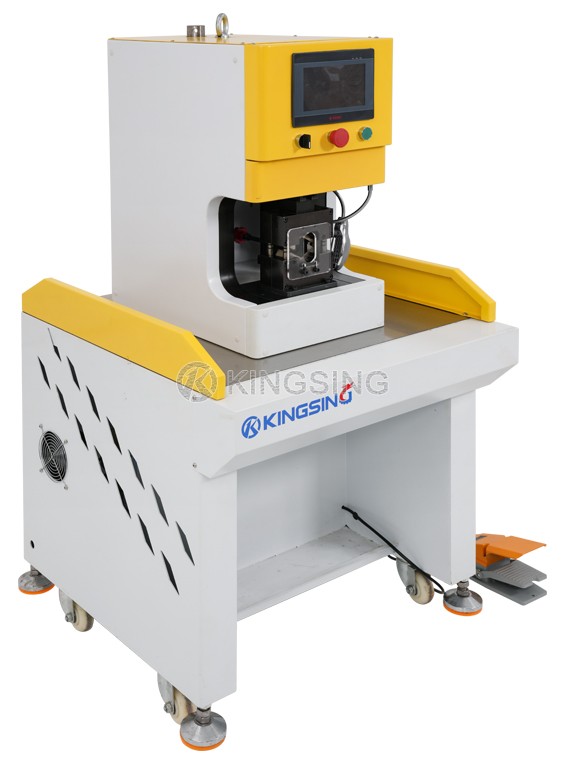

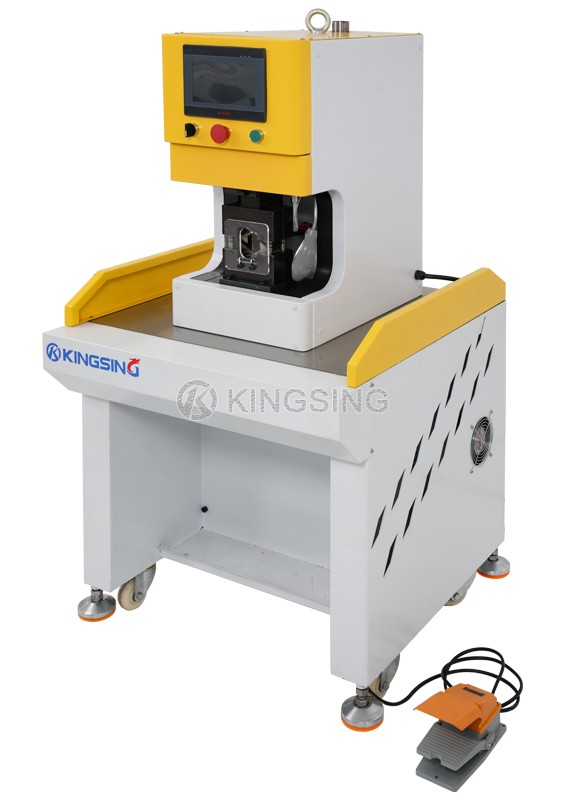

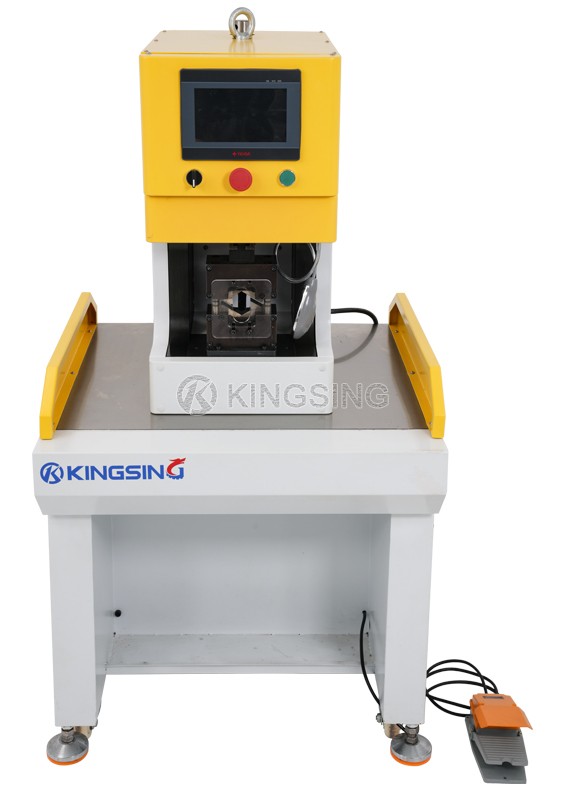

Servo-type Large Square Crimping Machine

  • Model:KS-T350 series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This series is a large-tonnage servo-type crimping machine, which can crimp wires up to 240mm2. It is often used for crimping new energy, electric vehicles, and charging pile wiring harnesses. Support a variety of crimping applicators, such as hexagonal crimping applicators, quadrilateral crimping applicators, four-point crimping applicators, B-shaped crimping applicators, etc.

  2. Color touch screen operation interface, the crimping stroke can be set directly in the program, no need to manually adjust the screw. The program memory function can save the splicing parameters of different wires into the database. When changing products, the corresponding crimping parameters can be called out with one key, saving debugging time.

  3. Functions can be expanded according to customer needs, such as computer industrial control systems that support network connections, crimping force monitors, code scanners, receipt printers, etc. can be selected. It can be connected with the MES system through the LAN, and the production tasks can be issued remotely.

Download: (1)
ModelKS-T350AKS-T350B
Crimping Force30T50T
Motor Power2300W5500W
Crimp Range2.5~120mm22.5~240mm2
Power Supply220V 50/60Hz380V 50/60Hz
Net Weight340kg400kg
Dimensions750*720*1400mm750*720*1400mm

Crimp stroke: 30mm

Operation interface: 7-inch color touch screen

Optional functions: MES system, crimping force monitoring, code scanning gun

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
