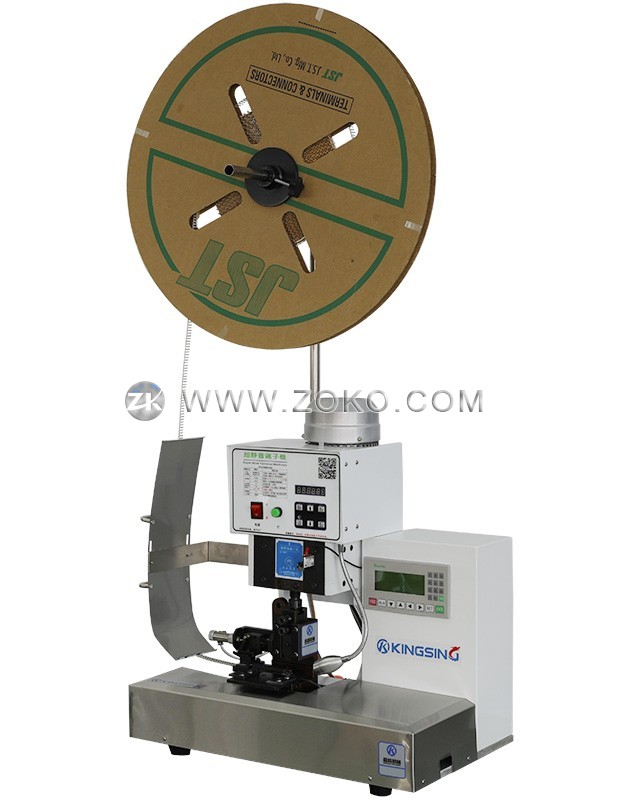

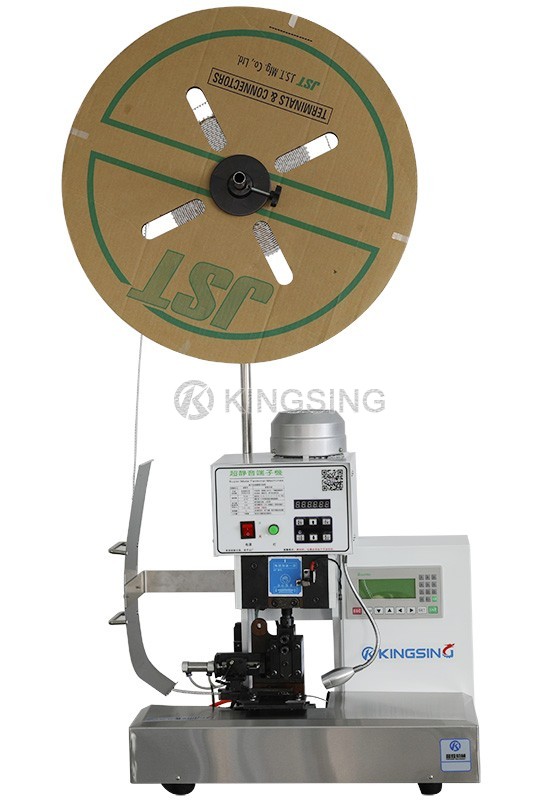

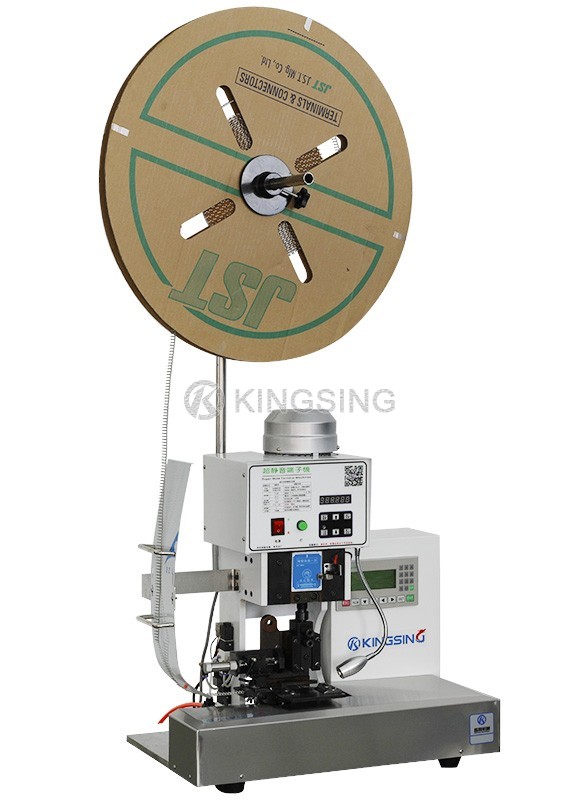

Economical FFC Flat Cable Crimping Machine

  • Model:KS-T558
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

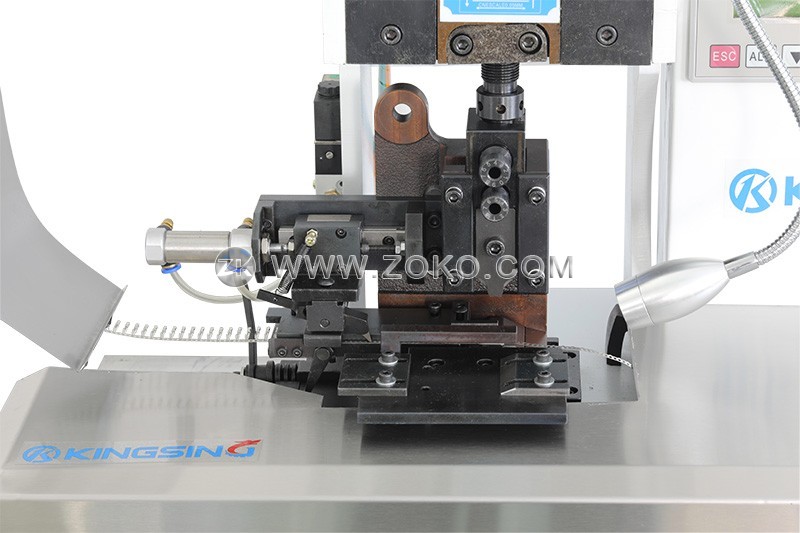

This is an economical film panel FFC flexible cable crimping machine, the operator only needs to put the wire into the positioning fixture. The machine can automatically send the wire to the position of the crimping and crimp the terminal. The number of pins of the wire and the position of the crimping can be set in the program. One machine can process a variety of different products, and the crimping applicator adopts a standard OTP bayonet, so it is convenient and quick to change the applicator.

Download: (1)

Applicable wire: FFC flat cable, membrane switch panel

Pitch type: 1.27mm, 2.54mm, 5.08mm

Crimp times: up to 30Pin (depending on the pitch type)

Crimp stroke: 30mm

Air pressure: 0.4~0.6Mpa

Power supply: 220V 50/60Hz

Net weight: 50kg

Dimensions: 590*360*660mm

Note:

  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
